• WHIPPLE SUPERCHARGERS S550 EXCLUSIVE FEATURES

  • Most powerfurl 50-state legal system available (825 engine HP on 93 octane)
  • No other upgrades required, just massive power right out of the box (nearly double the stock horsepower)
  • Inverted front entry W185ax (3.0 liters) Whipple twin-screw supercharger that significantly outperforms competitions 1.9L and 2.3L roots-type systems (front entry design can be up to 8% more efficient then a side/rear entry)
  • 3.0L is 30% larger than 2.3L roots-type allowing lower power consumtpion and lower discharge temps to flow the same amount of air (more power to the rear wheels)
  • Oversized Crusher™ inlet for maximum airflow capacity and minimal rotor cavitation (unique Roval 150mm inlet)
  • Front feed allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas
  • Patented dual core, dual pass intercooler system for industry leading air temps
  • Largest air-to-water aluminum bar-plate intercooler in the industry (over 33% larger than competition) offers more cooling than any other positive displacement system available, nothing comes close
  • Massive oversized aluminum intercooler reservoir (over 2 gallons) holds more than double any competitors IC water system allowing longer more consistent power levels vs. competition
  • Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy
  • Included OBDII flash tool and the new Flight Control technology
  • Whipple Tomahawk allows wheel/tire axle changes (A Whipple exclusive)
  • 72LB/HR fuel injectors vs others 47LB/HR that others use which severely limits power potential
  • Self-contained oversized oil system for dramatically reduced oil temps in even the most demanding conditions
  • Exclusive 3x4 rotor combo for significant increase in airflow under the curve than less efficient 4x6 rotor combo or 4x4 roots
  • Center discharge port for better cylinder to cylinder distribution then other twin-screws with cobbled together billet adapters and forward facing discharge
  • More boost at the "hit" than any other twin-screw
  • Flat torque curve for incredible acceleration
  • Oversized heat exchanger for incredible intercooler water temps, 150% more volume then competition, standard with every kit
  • Fits under factory hood with no modifications
  • No cutting or grinding on the engine block (Roush system requires grinding engine block and timing cover)
  • No cutting or grinding the K-brace (Roush system requires this to be removed or cut beyond function)
  • No internal modifications required
  • Completed installation looks factory installed, not some cobbled together kit with multiple billet adapters
  • Kits come complete with all necessary parts and hardware for installation
  • Unique oil level sight glass for easy oil level and quality check, no dipstick to bind or misread
  • Plug and play wiring with male and female connections
  • Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
  • Optional 10-rib belt system with matching billet pulleys
  • OEM quick connect fittings for easy installation, no ugly brass or steel fittings on the SC

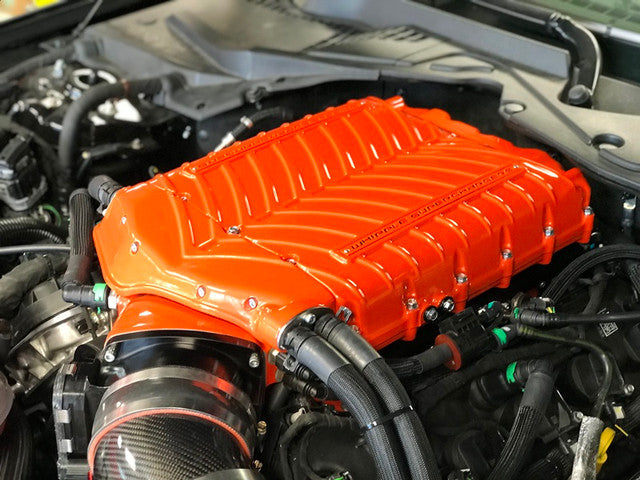

  • Available in wrinkle black, polish, Ford textured blue or any custom color
  • Easily upgradeable with bigger intercooler pumps, dual electric Spal 11" high speed fans, optional supercharger pulleys
  • Instant boost at the touch of the throttle
  • 3 minute pulley changes
  • Easy belt changes
  • Lightweight pocketed aluminum SC pulley
  • Spark plugs included

Please note eta from order is 6-12 weeks and are special ordered.
